Technical information

The SuperMESH series is obtained through an extreme optimization of ST’s well established strip-based PowerMESH layout. In addition to pushing on-resistance significantly down, special care is taken to ensure a very good dv/dt capabilityfor the most demanding applications.

• TYPICAL RDS(on) = 0.45 O
• EXTREMELY HIGH dv/dt CAPABILITY
• 100% AVALANCHE TEST
• EDGATE CHARGE MINIMIZED
• VERY LOW INTRINSIC CAPACITANCES
• VERY GOOD MANUFACTURING REPEATIBILITY


APPLICATIONS:

• HIGH CURRENT, HIGH SPEED SWITCHING
• IDEAL FOR OFF-LINE POWER SUPPLIES, ADAPTORS AND PFCLIGHTING

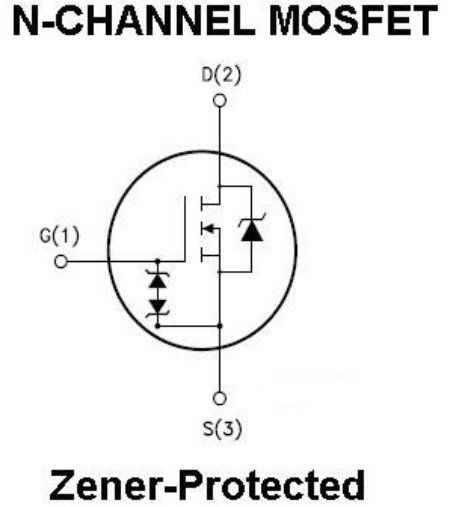

ZENER PROTECTED is PROTECTION FEATURES OF GATE-TO-SOURCE ZENER DIODES (see above INTERNAL SCHEMATIC DIAGRAM)

The built-in back-to-back Zener diodes have specifically been designed to enhance not only the device’s ESD capability, but also to make them safely absorb possible voltage transients that may occasionally be applied from gate to source. In this respect the Zener voltage is appropriate to achieve an efficient and cost-effective intervention to protect the device’s integrity. These integrated Zener diodes thus avoid the usage of external components.
