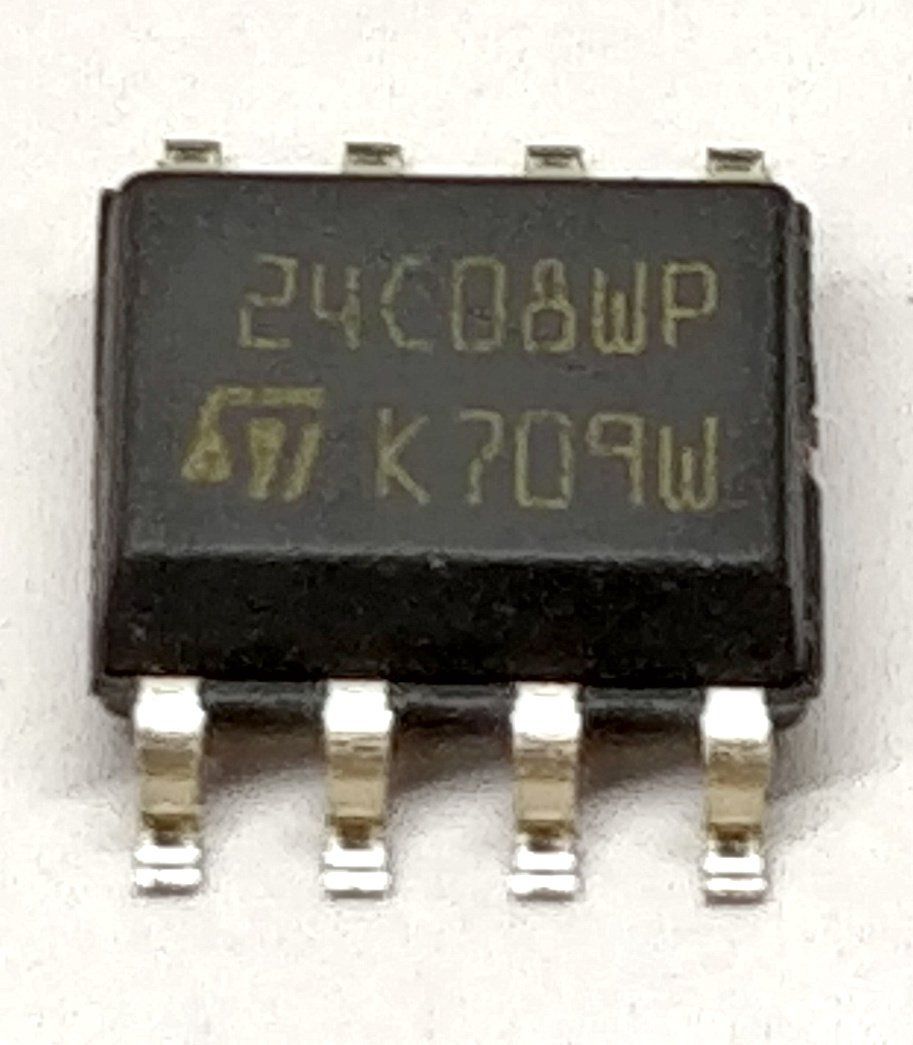

M24C08-WMN6
> 17.000 pcs in our german Stock
| 8 Kbit Serial I²C Bus EEPROM |
|---|
| Vcc 2.5V to 5.5V | -40°C to 85°C |
| Manufacturer: STMicroelectronics |

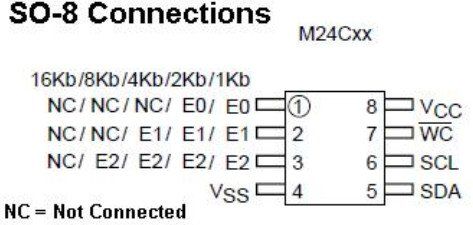

| Package: SO-8 |
| Compatible to AT24C08 and to a lot of other manufactures of 24C08 |
|---|
| These I2C-compatible electrically erasable programmable memory (EEPROM) devices are organized as 1024 x 8 bit and operate with a power supply down to 2.5 V |
Request Quote
Please complete all required fields with your contact information. Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us: request@pargos.de
Technical information

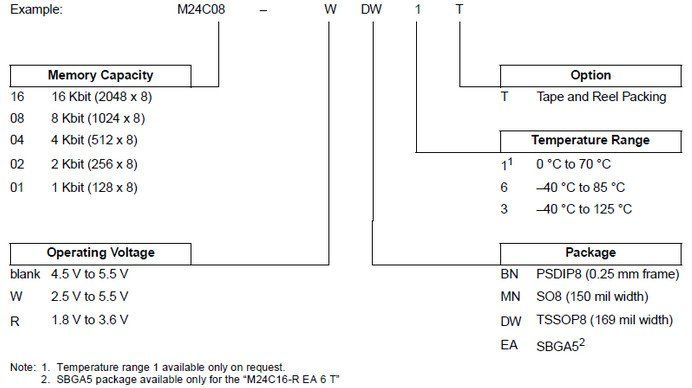

These I2C-compatible electrically erasable programmable memory (EEPROM) devices are organized as 2048/1024/512/256/128 x 8 bit (M24C16, M24C08, M24C04, M24C02, M24C01), and operate with a power supply down to 2.5 V (for the -W version of each device), and down to 1.8 V (for the -R version of each device). The M24C16, M24C08, M24C04, M24C02, M24C01 are available in Plastic Dual-in-Line, Plastic Small Outline and Thin Shrink Small Outline packages. The M24C16-R is also available in a chip-scale (SBGA) package.
- Two Wire I²C Serial Interface Supports 400 kHz Protocol
- Single Supply Voltage:
- 4.5V to 5.5V for M24Cxx
- 2.5V to 5.5V for M24Cxx-W
- 1.8V to 3.6V for M24Cxx-R - Hardware Write Control
- BYTE and PAGE WRITE (up to 16 Bytes)
- RANDOM and SEQUENTIAL READ Modes
- Self-Timed Programming Cycle
- Automatic Address Incrementing
- Enhanced ESD/Latch-Up Behavior
- 1 Million Erase/Write Cycles (minimum)
- 40 Year Data Retention (minimum)
- Extended Temperature Range –40°C to 85°C
NOT PULLED - NOT USED - NOT REFURBISHED - NOT SOLDERED - NOT RE-MARKED - NOT FAKED
EXCLUSIVELY NEW OLD STOCK (NOS)
