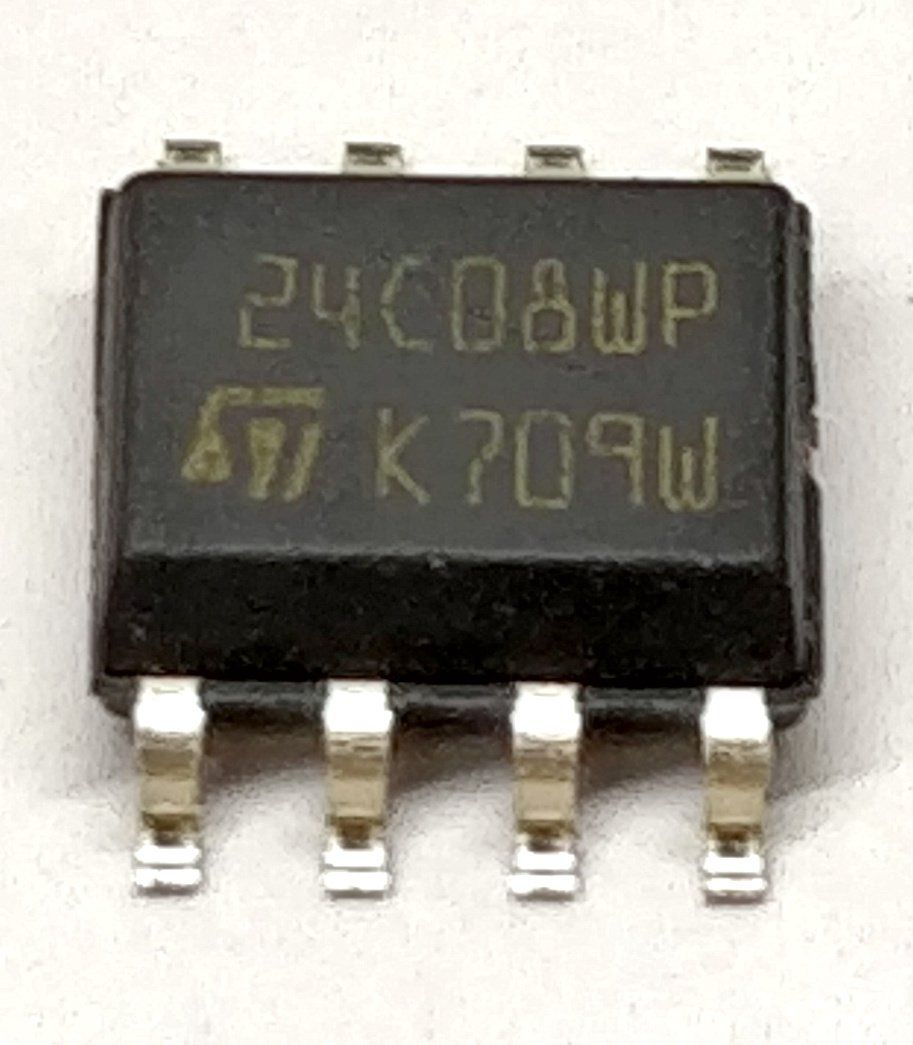

M24C08-WMN6

> 17.000 pcs in our german Stock

8 Kbit Serial I²C Bus EEPROM
Vcc 2.5V to 5.5V | -40°C to +85°C
Manufacturer: STMicroelectronics

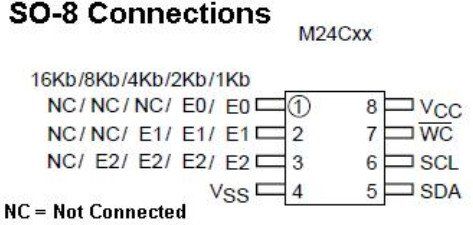

Package: SO-8
Compatible to AT24C08 and to a lot of other manufactures of 24C08
These I2C-compatible electrically erasable programmable memory (EEPROM) devices are organized as 1024 x 8 bit and operate with a power supply down to 2.5 V
BUW1215

Request Quote

Please complete all required fields with your contact information. Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us: request@pargos.de

Kontaktieren Sie uns

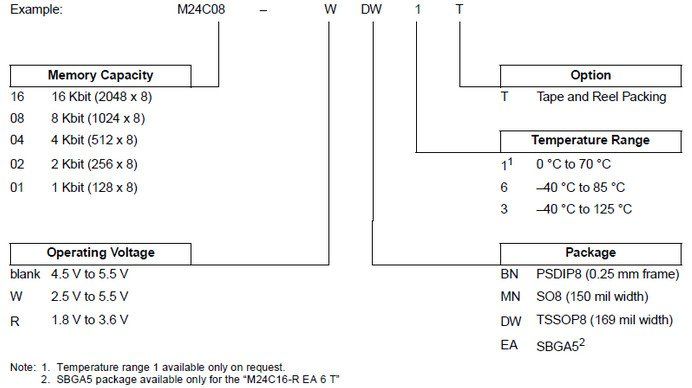

These I2C-compatible electrically erasable programmable memory (EEPROM) devices are organized as 2048/1024/512/256/128 x 8 bit (M24C16, M24C08, M24C04, M24C02, M24C01), and operate with a power supply down to 2.5 V (for the -W version of each device), and down to 1.8 V (for the -R version of each device).
The M24C16, M24C08, M24C04, M24C02, M24C01 are available in Plastic Dual-in-Line, Plastic Small Outline and Thin Shrink Small Outline packages. The M24C16-R is also available in a chip-scale (SBGA) package.

  • Two Wire I²C Serial Interface Supports 400 kHz Protocol
  • Single Supply Voltage:
    - 4.5V to 5.5V for M24Cxx
    - 2.5V to 5.5V for M24Cxx-W
    - 1.8V to 3.6V for M24Cxx-R
  • Hardware Write Control
  • BYTE and PAGE WRITE (up to 16 Bytes)
  • RANDOM and SEQUENTIAL READ Modes
  • Self-Timed Programming Cycle
  • Automatic Address Incrementing
  • Enhanced ESD/Latch-Up Behavior
  • 1 Million Erase/Write Cycles (minimum)
  • 40 Year Data Retention (minimum)
  • Extended Temperature Range –40°C to +85°C


NOT PULLED - NOT USED - NOT REFURBISHED - NOT SOLDERED - NOT RE-MARKED - NOT FAKED

EXCLUSIVELY NEW OLD STOCK (NOS)
