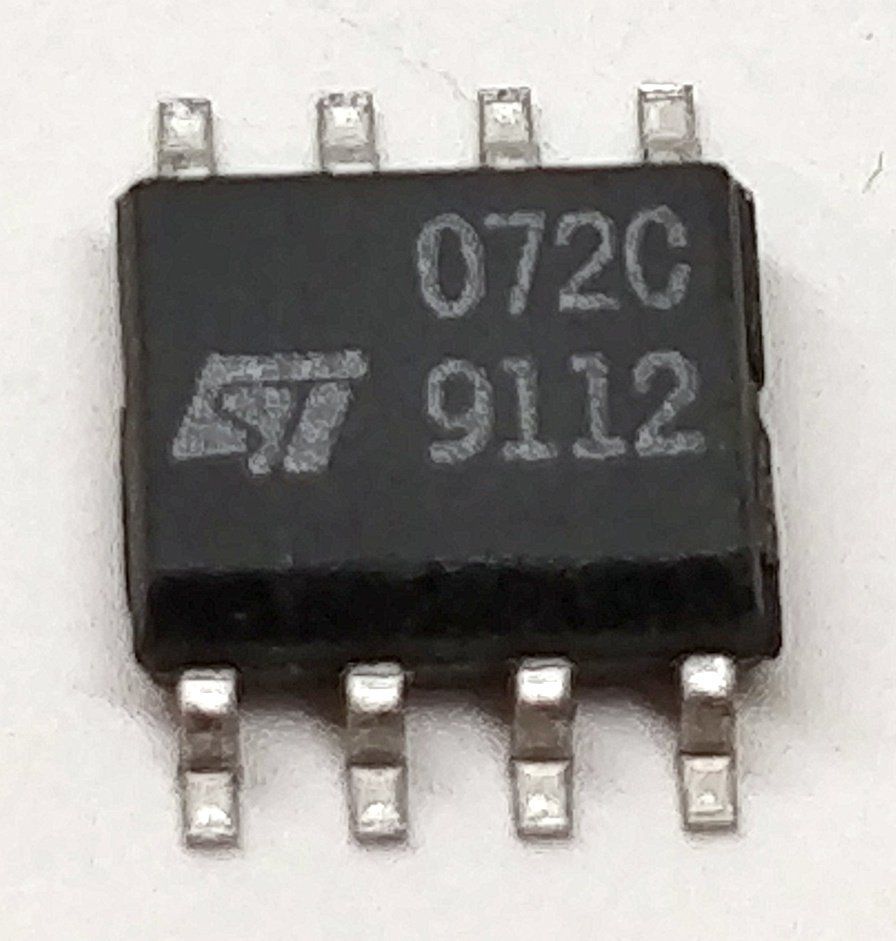

TL072CD
> 10.000 pcs in our german Stock
| LOW NOISE J-FET DUAL OPERATIONAL AMPLIFIER |
|---|
| Vcc /-18V |
| Manufacturer: STMicroelectronics |

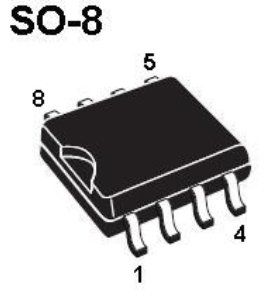

| Package: SO-8 |
| The OFFSET VOLTAGE SELECTIONS is 8mV max. |
|---|
Request Quote
Please complete all required fields with your contact information. Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us: request@pargos.de
Technical information
The TL072, TL072A and TL072B are high speed J–FET input dual operational amplifiers incorporating wellmatched,high voltageJ–FETand bipolar transistors in amonolithic integratedcircuit. The devicesfeaturehighslewrates, lowinputbiasand offsetcurrent, and lowoffset voltage temperature coefficient.
- WIDE COMMON-MODE (UP TO VCC+) AND DIFFERENTIAL VOLTAGERANGE
- LOW INPUT BIAS AND OFFSET CURRENT
- LOW NOISE en = 15nV/vHz (typ)
- OUTPUTSHORT-CIRCUIT PROTECTION
- HIGH INPUT IMPEDANCE J–FET INPUT STAGE
- LOWHARMONIC DISTORTION : 0.01%(typ)
- INTERNAL FREQUENCY COMPENSATION
- LATCH UP FREE OPERATION
- HIGH SLEWRATE : 16V/µs (typ)
NOT PULLED - NOT USED - NOT REFURBISHED - NOT SOLDERED - NOT RE-MARKED - NOT FAKED
EXCLUSIVELY NEW OLD STOCK (NOS)
