TL072CD

> 10.000 pcs in our german Stock

LOW NOISE J-FET DUAL OPERATIONAL AMPLIFIER
Vcc +/-18V
Manufacturer: STMicroelectronics

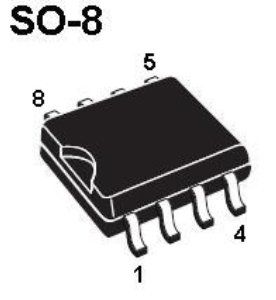

Package: SO-8
The OFFSET VOLTAGE SELECTIONS is 8mV max.
BUW1215

Request Quote

Please complete all required fields with your contact information. Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us: request@pargos.de

Kontaktieren Sie uns

The TL072, TL072A and TL072B are high speed J–FET input dual operational amplifiers incorporating wellmatched,high voltageJ–FETand bipolar transistors in amonolithic integratedcircuit. The devicesfeaturehighslewrates, lowinputbiasand offsetcurrent, and lowoffset voltage temperature coefficient.


  • WIDE COMMON-MODE (UP TO VCC+) AND DIFFERENTIAL VOLTAGERANGE
  • LOW INPUT BIAS AND OFFSET CURRENT
  • LOW NOISE en = 15nV/vHz (typ)
  • OUTPUTSHORT-CIRCUIT PROTECTION
  • HIGH INPUT IMPEDANCE J–FET INPUT STAGE
  • LOWHARMONIC DISTORTION : 0.01%(typ)
  • INTERNAL FREQUENCY COMPENSATION
  • LATCH UP FREE OPERATION
  • HIGH SLEWRATE : 16V/µs (typ)


NOT PULLED - NOT USED - NOT REFURBISHED - NOT SOLDERED - NOT RE-MARKED - NOT FAKED

EXCLUSIVELY NEW OLD STOCK (NOS)
